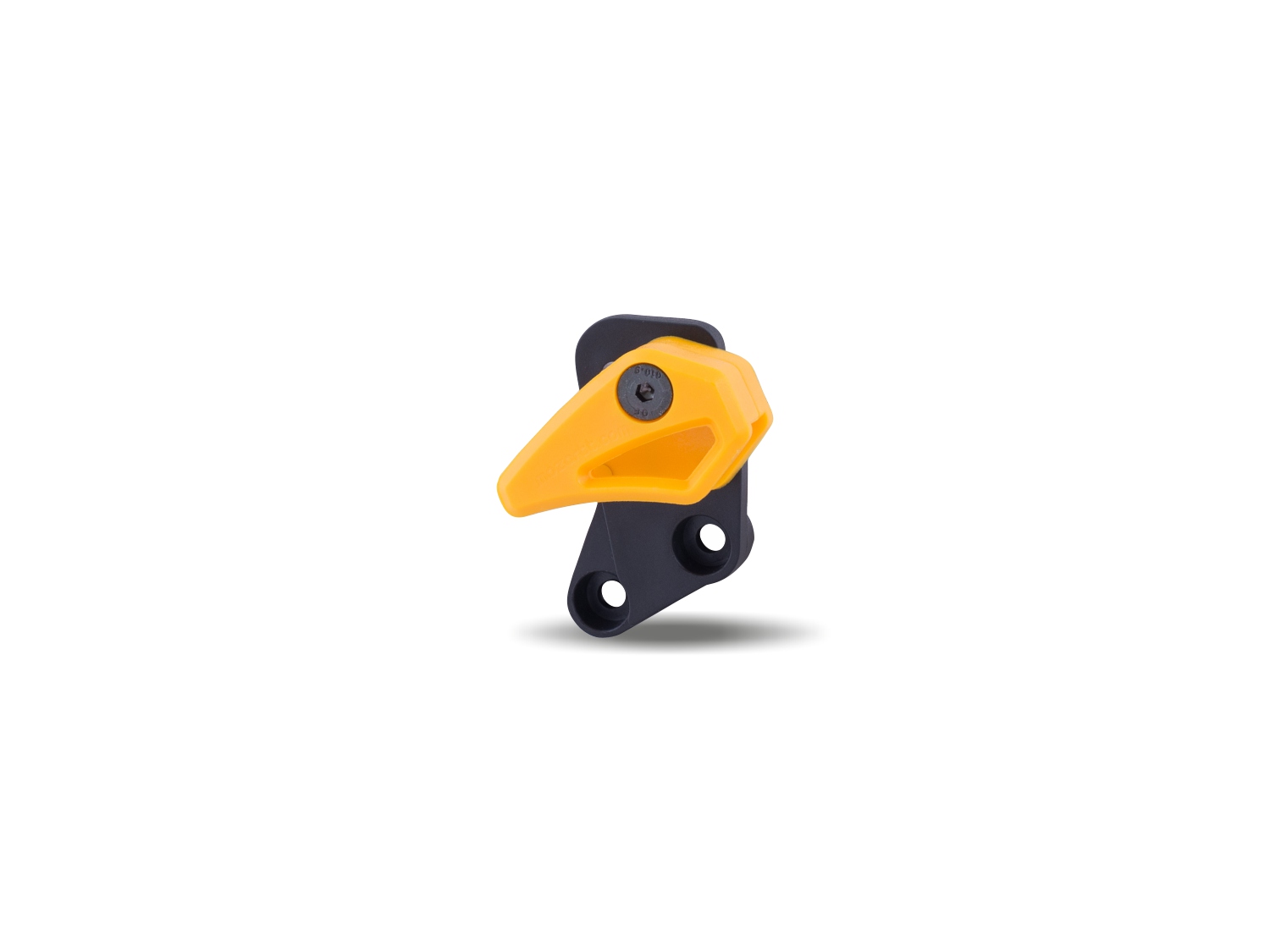

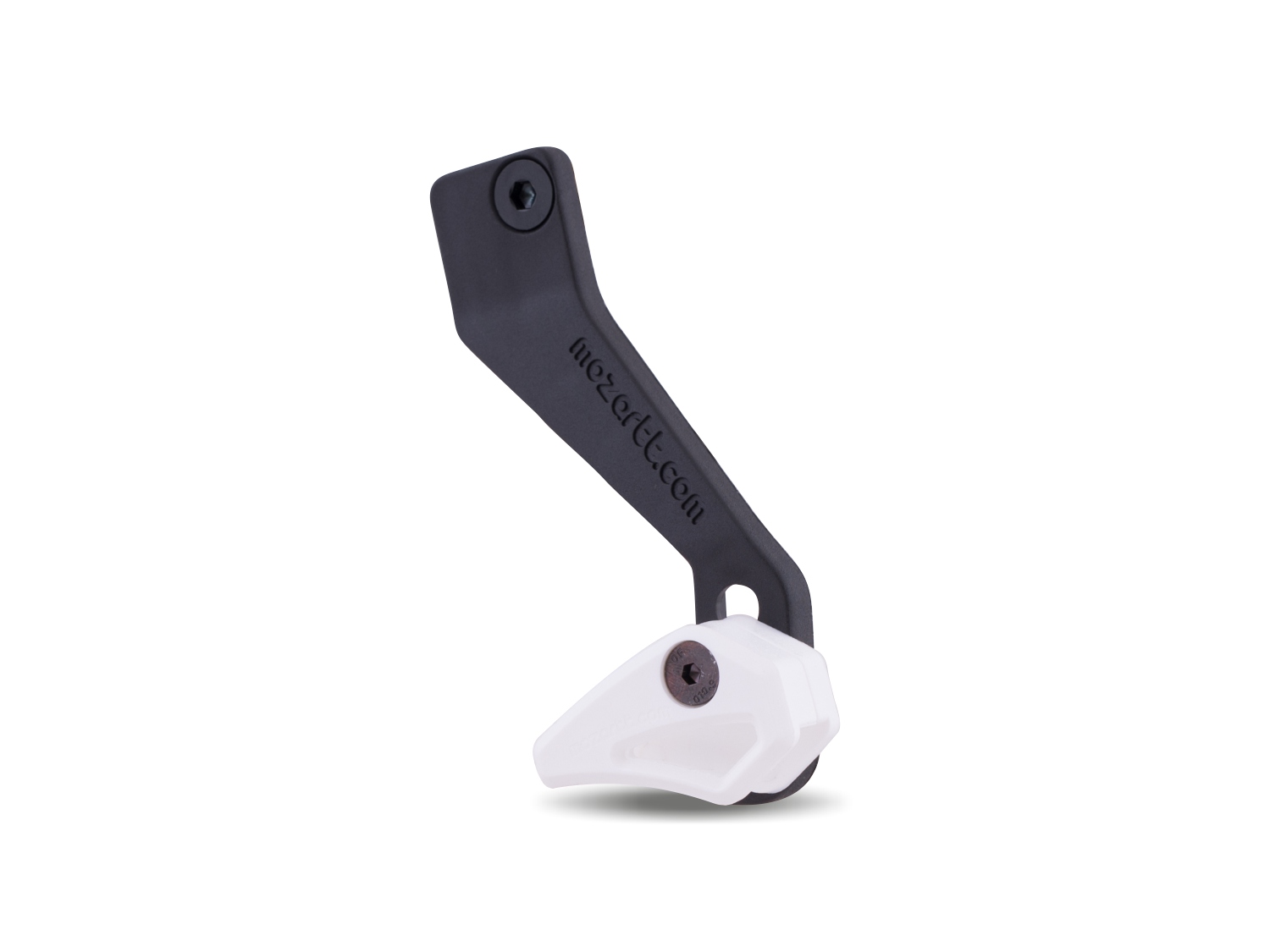

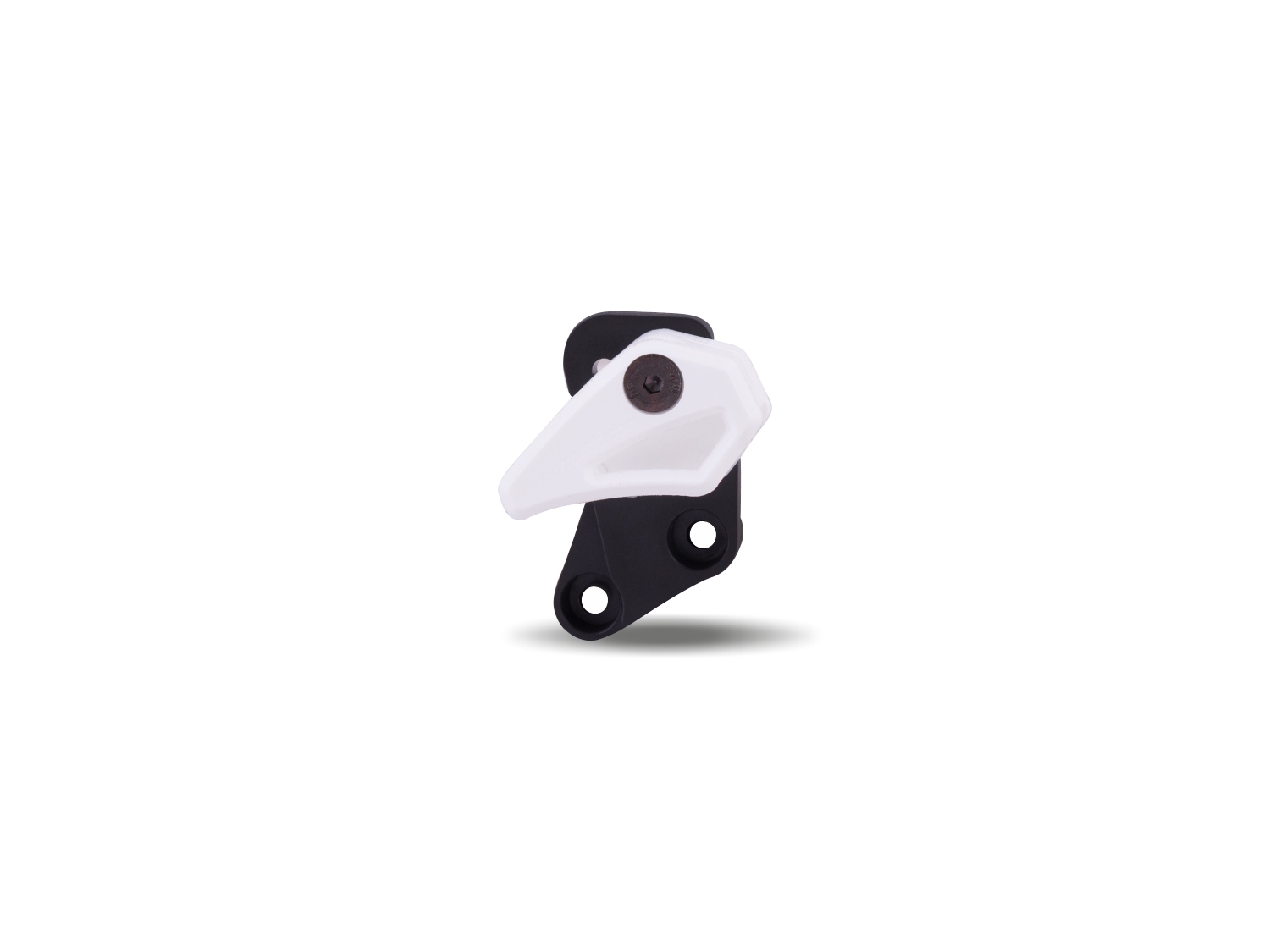

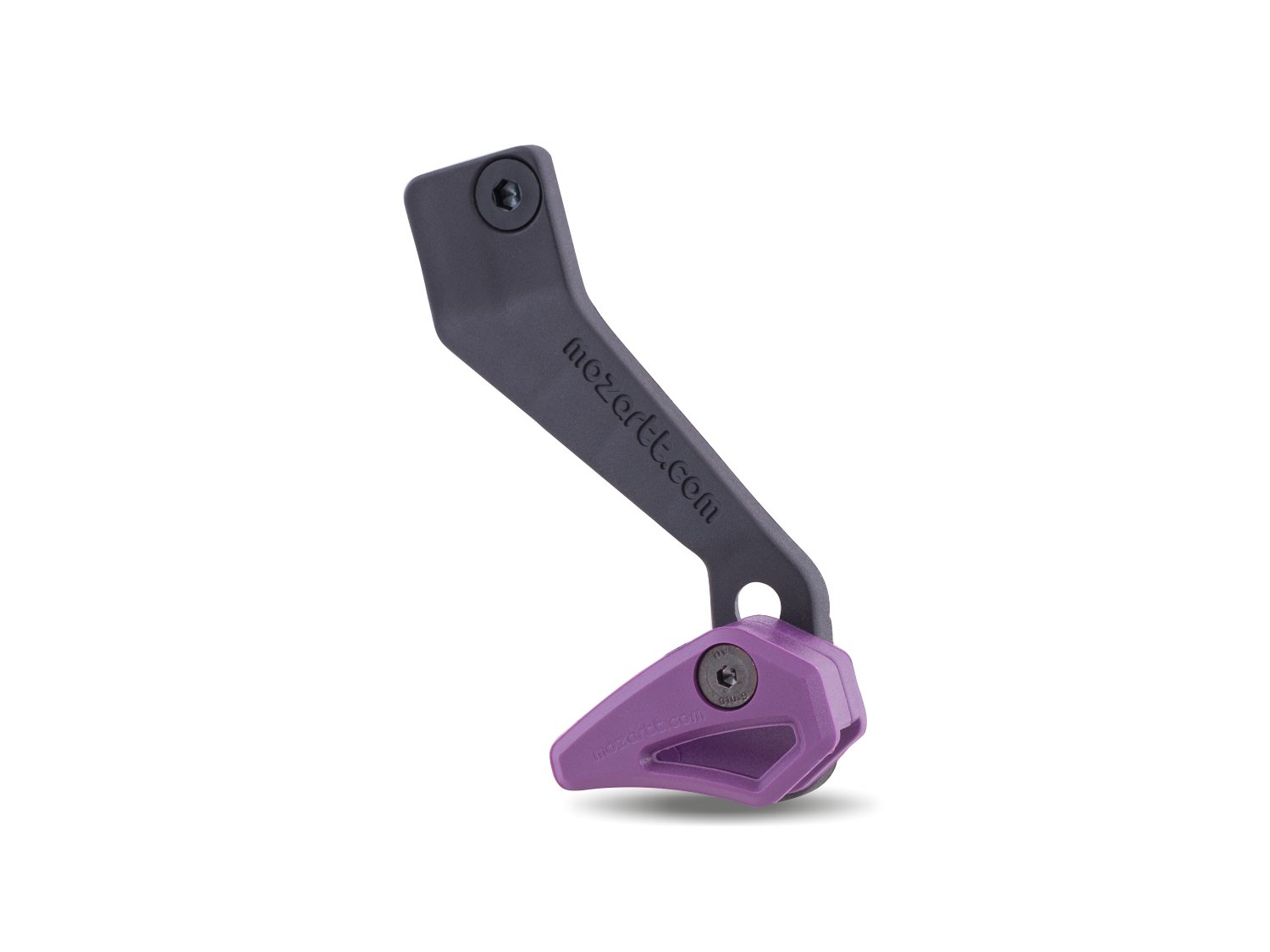

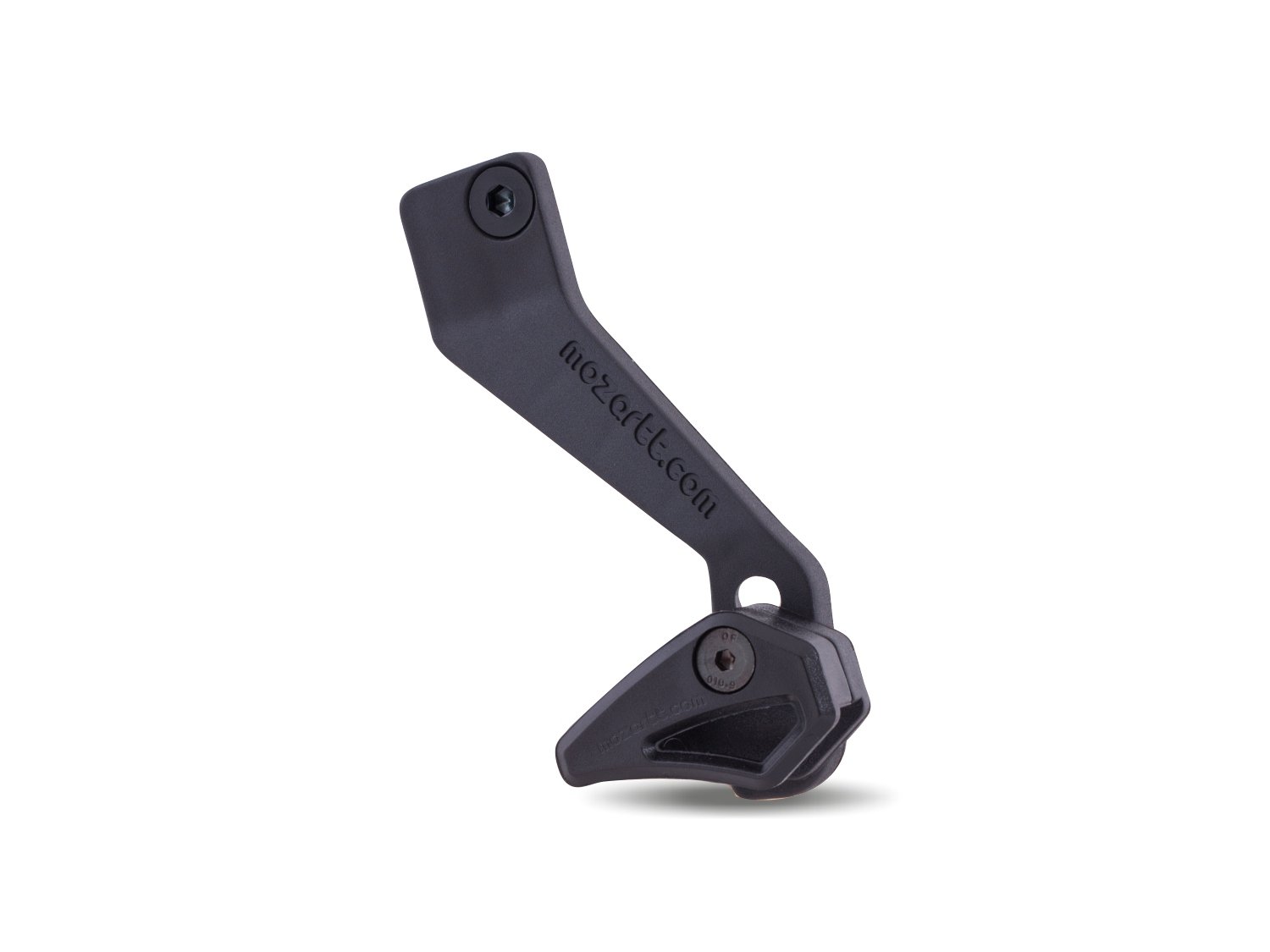

Piano HDM / S3

29.00

Key Features:

  • Compatible with S3/e-type or High Direct Mount (HDM) standard
  • Extra set of guide plates made for oval chainrings, ensuring chain security regardless of your chainring choice.
  • Perfect not only for enduro bikes but also in less demanding mountain biking disciplines like XC, AM, or even Cyclocross.
  • Quick and Easy installation: Takes just 5 minutes for hassle-free setup, which doesn’t require removal of crankset or any other part of your bike.
    • To adjust the S3/e-type 1x guide use the attached set of distance washers, which need to be inserted between the tensioner and the frame.
    • To adjust the HDM 1x chain guide you need the attached distance washers. They are made of carbon fiber and don’t make the device heavier. The adjustment range of the chain guide chainline is from 48,5 to 51,5 millimeters.

Mozartt Piano 1x chain guide serves as the essential component where the combination of a narrow-wide chainring and derailleur with a clutch may fall short on challenging trails. Crafted to replace the chain retention function of front derailleur, the mozartt.com Piano chain guide ensures secure chain placement, even on the most demanding trails. With a weight of just 25-40 grams (depends on version), its composite construction provides reliability, and minimizing disruptions during your ride.

Ultralight Construction:

The Piano S3 / e-type or HDM Chain Guide boasts an ultralight construction, weighing a mere 25 or 40 grams, striking the perfect balance between weight, rigidity and the highest durability. Ride with confidence, ride with mozart!

 Technical Data:

  • Chainring Range: 28T – 36T
  • Material: ultramide
  • Weight: 25-40 grams
Weight N/A
Color

Black, Orange, Purple, Green, White, Yellow

Material

Plastic composite

Mount

S3 / e-type, HDM

EAN code:
